Trane 3 Ton 14.3 SEER2 HVAC System
Gas System | Heat Pump System | Electric System
Available in three configurations, Gas, Heat Pump, and Electric, the Trane 3 Ton 14.3 SEER2 systems are the perfect balance between capacity and efficiency. The 3 Ton is perfect for medium to large homes. And, 14.3 SEER2 rating is the middle ground for efficiency and affordability.

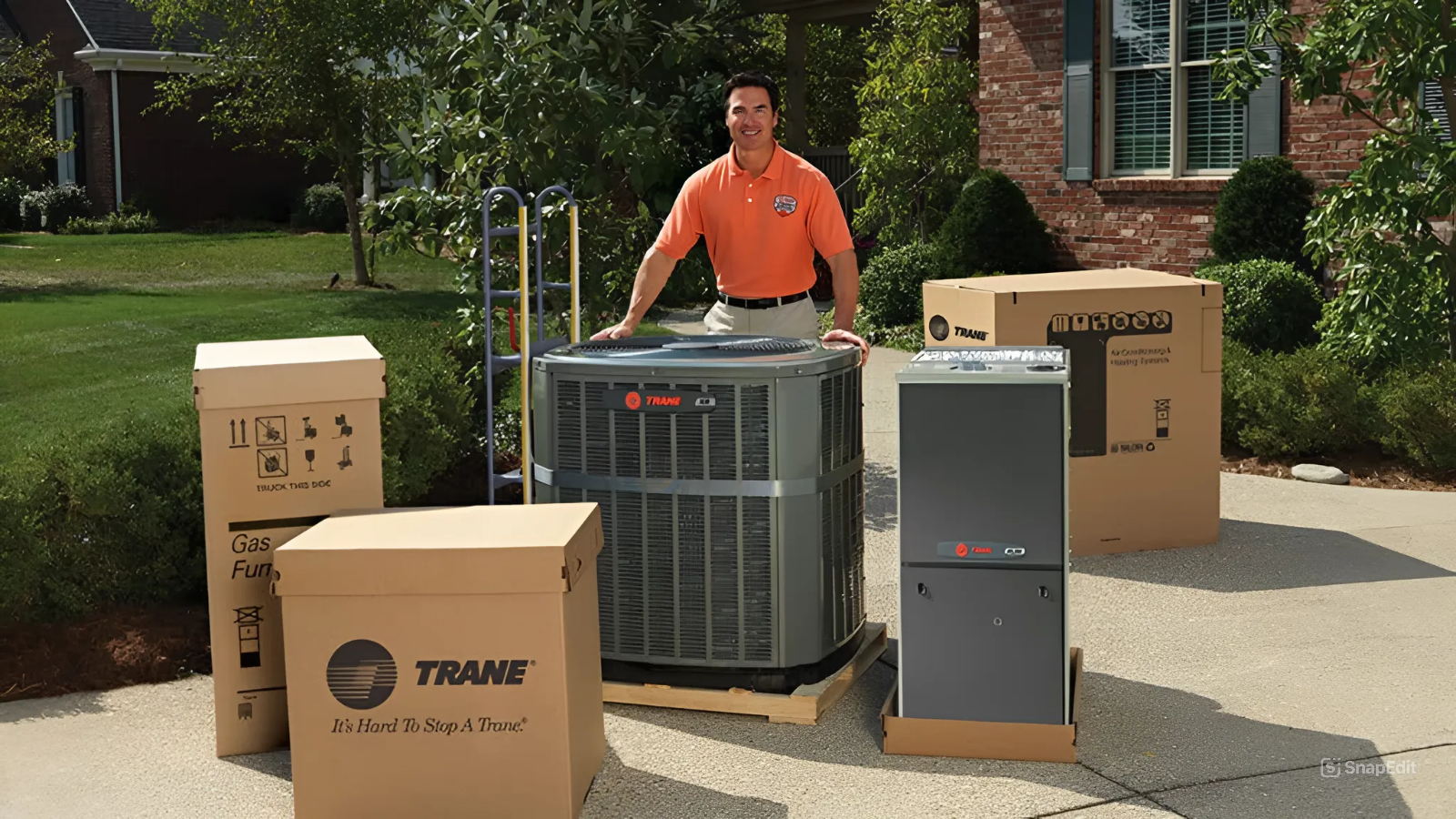

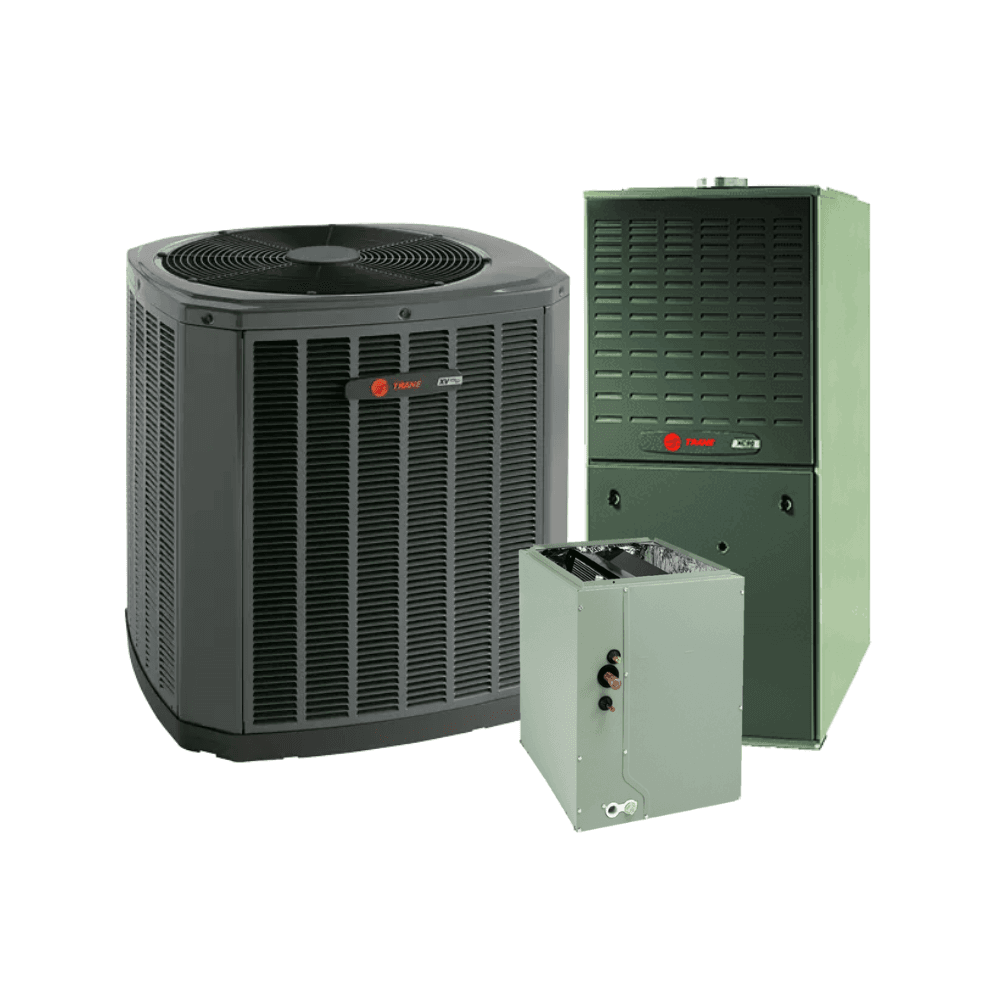

Gas System
$6,464.00
- Free Installation
The bundle Includes
|
Brand |
Trane |
|
HVAC Bundle |
Split Type
|
|
System Type |
Gas System |
|
Nominal Ton |
3.0 Ton |
|
SEER2 Rating |
14.3 SEER2 |
|
EER2 Rating
|
11.7 EER2 |
|
Capacity |
33600 BTU |
|
AHRI Number |
215558454 |
|
Air Conditioner (Outdoor Unit) |
5TTR4036A1000 |
|
Gas Furnace (Indoor Unit) |
S8X1B060M4PSC |
|
Cased Coil |
5TXCB006AS3HC |
|
Compatible Refrigerant |
R-454B |
|
Energy Star® Certified |
Yes |

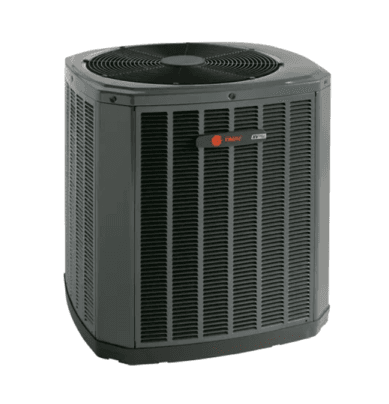

1. Trane 3 Ton 14.3 SEER2 36000 BTU R-454B Single-Stage Air Conditioner Condenser 5TTR4036A1000
- Eco-friendly R-454B refrigerant
- Built to last with optional WeatherGuard™ Top made of durable polycarbonate
- Rustproof DuraTuff™ basepan won’t crack, corrode, rust, or warp—ever
- Full-Sided Galvanized Steel Louvered Panels protect internal components while keeping airflow efficient
- Corrosion-resistant Baked-on Powder-Paint Finish
- Smart Climatuff® automatically adjusts for consistent, energy-efficient comfort
- Quick-Sess Cabinet ensures full coil protection
- Achieves up to 14.3 SEER2 & 11.7 EER2—saving you money on energy bills.
- All-Aluminum Spine Fin™ Woven Coil for enhanced heat transfer
| Brand | Trane |
| Type | Air Conditioner Condenser |
| Series | 14 Single-Stage Air Conditioner |
| Model | 5TTR4036A1000 |
| Nominal Tons | 3.0 Ton |
| Cooling Capacity | 36000 BTU |
| SEER2 | 14.3 SEER2 |
| EER2 | 11.7 EER2 |
| Stage(s) | Single-Stage |
| Refrigerant | R-454B |
| Dimension | 33H x 30W x 33D |

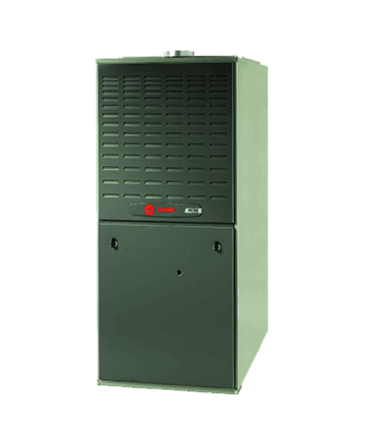

2. Trane 60000 BTU 80% AFUE S8X1 Single-Stage Gas Furnace S8X1B060M4PSC
- Multi-port, in-shot burners perfectly shape the flame cone for maximum heat output
- Optional Trane CleanEffects® Whole Home Air Cleaner removes harmful irritants
- Nine-tap blower motor for quiet operation
- Insulated cabinet to ensure you barely notice the sound of it running
- Durable and tubular steel heat exchanger
- Reliable ignition with silicon nitride hot surfact igniter
- Pre-painted galvanized heavy steel cabinet that is built to last
- 80% AFUE rating that delivers powerful heating even in the coldest winters
- Self-diagnostic microelectronic controller makes troubleshooting easy and ensures optimal performance
| Brand | Trane |
|---|---|
| Type | Gas Furnace |
| Series | 80 Single-Stage Gas Furnace |
| Model | S8X1B060M4PSC |
| AFUE Rating | 80% AFUE |
| Heating Capacity | 60,000 BTU |
| Heating Stage(s) | Single-Stage |
| Dimension (H x W x D) | 34″ × 17.5″ × 28.75″ |

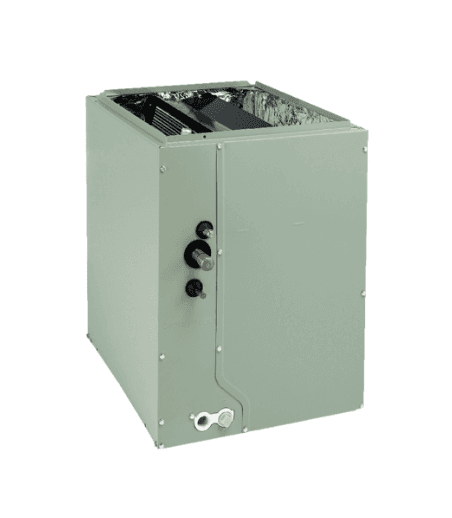

3. Trane 2-4 Ton 24000-48000 BTU R-454B Downflow/Horizontal/Upflow Multi-Positional Cased Coil 5TXCB006AS3HC
- Mechanically connected Thermal Expansion Valve (TXV) for efficient and reliable comfort
- Factory-installed TXV that offers better refrigerant control than other designs
- Super rust and corrosion resistant aluminum build that outperforms copper
- Textured painted finish that matches the sleek look
- Coil performance boost with enhanced fin surface
- Hassle-free maintenance with two-piece, non-corrosive inner coil panels
- Simplified door design that also grants easy access for cleaning
- Lower noise with 100% foil-backed insulation
- Standing water prevention with sloped drain pan
- Tested above 500 PSI to detect and prevent leaks
- Versatile compatibility with 2-speed and variable speed systems
- Double-sloped design that fits vertical and horizontal setups with ease
| Brand | Trane |
|---|---|
| Type | Cased Coil |
| Series | Comfort™ Coil – Multi-position |
| Model | 5TXCB006AS3HC |
| Ton | 2.0-4.0 Ton |
| Capacity | 24,000-48,000 BTU |
| Position | Downflow/Horizontal/Upflow — Multi-Positional |
| Refrigerant | R-454B |
| Dimension | 26.8H x 17.5W x 21.5D |
Need reliable heating for cold winters? Reach out for your brand new Trane Gas Furnace system! And the best part is you don’t have to worry about the load of installation cost. If you are living in Dallas, Austin, or Houston; purchase from the link below to get your Gas Furnace completely FREE!

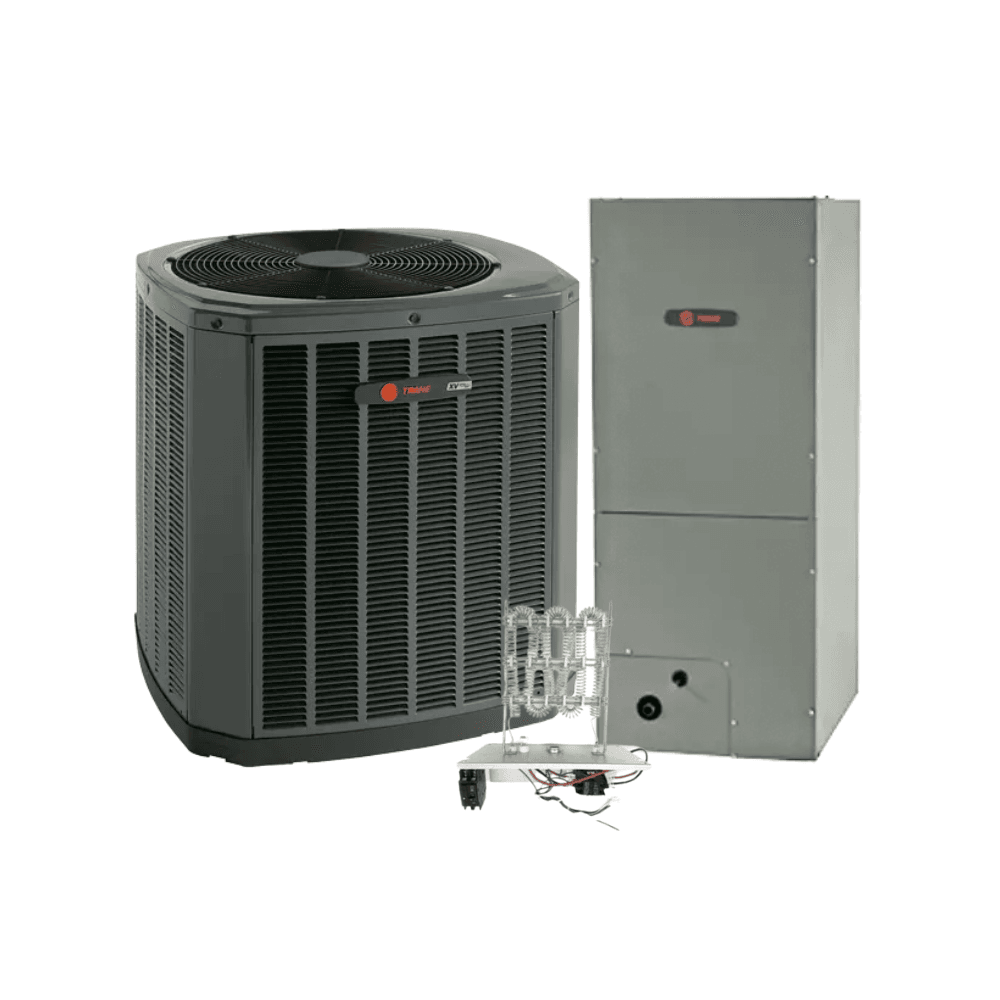

Heat Pump System
$7,899.00
- Free Installation
The bundle Includes
|
Brand |
Trane |
|
HVAC Bundle |
Split Type
|
|
System Type |
Heat Pump System |
|
Nominal Ton |
3.0 Ton |
|
SEER2 Rating |
14.3 SEER2 |
|
EER2 Rating
|
11.7 EER2 |
|
Capacity |
33000 BTU |
|
AHRI Number |
215610867 |
|
Heat Pump (Outdoor Unit) |
5TWR4036A1000 |
|
Air Handler (Indoor Unit) |
5TEM4D05AC41S |
|
Electric Heater Kit |
BAYHTR1510BRK |
|
Compatible Refrigerant |
R-454B |
|
Energy Star® Certified |
Yes |
1. Trane 3 Ton 14.3-15.2 SEER2 36000 BTU R-454B Single-Stage Heat Pump 5TWR4036A1000
- Galvanized steel louvered panels built for ultimate durability
- Proved durability through SEET tests
- Optional WeatherGuard Top protection against harsh weather elements
- High longevity with baked-on powder coating
- Corrosion resistance with WeatherGuard Fasteners
- Outdoor usability with All-Aluminum Spine Fin Coil
- Quiet operation and cost-efficient performance with Climatuff Scroll Compressor
| Brand | Trane |
| Series | 14 Single-Stage Heat Pump |
| Model | 5TWR4036A1000 |
| Ton | 3 Ton |
| Fan Speed | Single Speed |
| Stage | Single Stage |
| Capacity | 36000 BTU |
| SEER2 Rating | 14.3-15.2 SEER2 |
| HSPF2 Rating | 7.5-7.8 HSPF2 |
| Dmension | 33H x 34W x 37D |
2. Trane 3-4 Ton 36000-48000 BTU Multi-Speed Convertible Air Handler 5TEM4D05AC41S
- Consistent airflow with Vortica Blower
- Adjustable variable-speed fan
- Durable and rust-resistant All-Aluminum Coil
- Galvanized steel cabinet with corrosion and wear protection
- Rust-free operation with No-Rust Polymer Drain Pan
- Humidity control with minimal noise with Comfort-R Technology
- Extra warmth with optional electric heating feature
- Trane CleanEffects compatibility for added protection against allergens and pollutants
| Brand | Trane |
| Series | Air Handler |
| Model | 5TEM4D05AC41S |
| Heating Capacity | 36000-48000 BTUh |
| Motor | Multi-Speed ECM Motor |
| Configuration | 4-Way Convertible |
| Fan Stages | Variable Stage |
| Dimension | 51.4H x 23.5W x 21.1D |
3. Trane 10 kW (7.2-9.6 kW) 24600-32800 BTUh Single-Phase Electric Heater BAYHTR1510BRK
- Perfect supplemental heating with 24600-32800 BTU of heat
- Efficient heating without wasting energy with 10kW (7.2-9.6kW) single phase operation
- Designed for seamless integration with Trane air handlers and HVAC systems
| Brand | Trane |
| Collection | BAYHTR15 |
| Model | BAYHTR1510BRK |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Voltage | 208-240 V |
| Kilowatt | 7.2-9.6 kW ≈ 10 |
Electric HVAC System
$7,373.00
- Free Installation
The bundle Includes
For more effective cooling, air conditioners always generate more output and don’t depend on outside temperatures. That’s why air conditioners are better options than heat pumps for hotter climates where minimum heating might be required in some time of the year, but not heavily.
The Electric HVAC bundle of the Trane 3 Ton 14.3 SEER2 bundle contains the same products. But, an air conditioner replaces the heat pump for better cooling
|
Brand |
Trane |
|
HVAC Bundle |
Split Type
|
|
System Type |
Electric System |
|
Nominal Ton |
3.0 Ton |
|
SEER2 Rating |
14.3 SEER2 |
|
EER2 Rating
|
11.7 EER2 |
|
Capacity |
33000 BTU |
|
AHRI Number |
215440459 |
|
Air Conditioner (Outdoor Unit) |
5TTR4036A1000 |
|
Air Handler (Indoor Unit) |
5TEM4D04AC31S |
|
Electric Heater Kit |
5TXCB006AS3HC |
|
Compatible Refrigerant |
R-454B |
|
Energy Star® Certified |
Yes |
1. Trane 3 Ton 14.3 SEER2 36000 BTU R-454B Single-Stage Air Conditioner Condenser 5TTR4036A1000
- Eco-friendly R-454B refrigerant
- Built to last with optional WeatherGuard™ Top made of durable polycarbonate
- Rustproof DuraTuff™ basepan won’t crack, corrode, rust, or warp—ever
- Full-Sided Galvanized Steel Louvered Panels protect internal components while keeping airflow efficient
- Corrosion-resistant Baked-on Powder-Paint Finish
- Smart Climatuff® automatically adjusts for consistent, energy-efficient comfort
- Quick-Sess Cabinet ensures full coil protection
- Achieves up to 14.3 SEER2 & 11.7 EER2—saving you money on energy bills.
- All-Aluminum Spine Fin™ Woven Coil for enhanced heat transfer
| Brand | Trane |
| Type | Air Conditioner Condenser |
| Series | 14 Single-Stage Air Conditioner |
| Model | 5TTR4036A1000 |
| Nominal Tons | 3.0 Ton |
| Cooling Capacity | 36000 BTU |
| SEER2 | 14.3 SEER2 |
| EER2 | 11.7 EER2 |
| Stage(s) | Single-Stage |
| Refrigerant | R-454B |
| Dimension | 33H x 30W x 33D |
2. Trane 2-3.5 Ton 24000-42000 BTU Multi-Speed Convertible Air Handler 5TEM4D04AC31S
- R-4.2 Insulation Valve for superior energy efficiency and temperature control
- Draw-through design to optimize airflow
- Horizontal drain pan to prevent water buildup
- Energy-efficient and quiet operation with ECM motor
- Long-lasting protection with durable painted metal cabinet
- Multi-position configurations to fit horizontal right, left, upflow, and downflow
- Low-voltage pigtail connection for wiring that is quick and easy setup
- Fused 24V power to provide safe and reliable operation
- All-aluminum coil featuring patented coil fin for enhanced heat transfer
- Superior air-tight design with less than 2% air leak
| Brand | Trane |
| Series | Air Handler |
| Model | 5TEM4D04AC31S |
| Heating Capacity | 24000-42000 BTUh |
| Motor | Multi-Speed ECM Motor |
| Configuration | 4-Way Convertible |
| Fan Stages | Variable Stage |
| Dimension | 51.4H x 23.5W x 21.1D |
3. Trane 10 kW (7.2-9.6 kW) 24600-32800 BTUh Single-Phase Electric Heater BAYHTR1510BRK
- Perfect supplemental heating with 24600-32800 BTU of heat
- Efficient heating without wasting energy with 10kW (7.2-9.6kW) single phase operation
- Designed for seamless integration with Trane air handlers and HVAC systems
| Brand | Trane |
| Collection | BAYHTR15 |
| Model | BAYHTR1510BRK |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Voltage | 208-240 V |
| Kilowatt | 7.2-9.6 kW ≈ 10 |
Looking for an all-electric HVAC System? Let’s talk! Give us a call, and we will reach out to you directly. As usual, we’ll take care of your Electric HVAC system’s installation free of charge in the Dallas, Austin, and Houston area.
Gas System vs. Heat Pump System vs. Electric HVAC System
| Gas System | Heat Pump System | Electric HVAC System | |
|---|---|---|---|
| Heating Source |
Gas Furnace
|
Heat Pump + Electric Heater |
Electric Heater |
| Cooling Source |
Air Conditioner |
Heat Pump |
Air Conditioner |
| Best For Climates |
Cold Winters
|
Mild to Moderate Climates
|
Mild to Moderate Climates
|
Still not sure which system is right for you? Contact us for expert advice!
Why Choose Trane Air Conditioners?
Trane is one of the top manufacturers of HVAC due to their strength, including:
Customer Testimonial
Trane’s Green Initiative with Sustainable HVAC Solutions
Industries, worldwide, have taken their approach towards sustainable, green solutions. To align with the goal and new federal regulations, Trane is also taking initiatives to transition into low global warming potential (GWP) refrigerants by 2025.
In 2024, Trane launched their adoption of R-454B. It has a GWP rating of 470. It is 77.5% less than that of R-410A, which was used in earlier systems.
In the future, Trane continues to march forward with their high sustainability and performance goals. By 2030, the goal is to reduce the emissions by billion metric tons. And by 2050, they aim to achieve a net-zero carbon emission.
Why Should You Buy from HVAC Services Pro?
About Us
The Trane 3 Ton 14.3 SEER2 Gas, Heat Pump and Electric HVAC system is brought to you by HVAC Services Pro. HVAC Services Pro has been a dedicated provider for commercial and residential HVAC installation, emergency repair, maintenance, and air duct cleaning. And, their service is available all throughout Dallas, Austin, and Houston!
Service Area (Dallas-Fort Worth, Houston & Austin)
Dallas-Fort Worth Metroplex (DFW)
We cover all major cities from the heart of Dallas to the vibrant streets of Fort Worth. Our service extends to all the suburbs including Arlington, Plano, Frisco, and surrounding areas, too.
What We Offer:
- Expert AC repairs and installations
- Personalized commercial HVAC solutions
- 24/7 emergency services
Here’s a quick look at the areas we serve in DFW:
| City | ZIP Codes |
|---|---|
| Addison | 75001 |
| Allen | 75002, 75013 |
| Arlington | 76001, 76002, 76003, 76004, 76005, 76006, 76010, 76011, 76012, 76013, 76014, 76015, 76016, 76017, 76018, 76019 |
| Bedford | 76021, 76022, 76095 |
| Carrollton | 75006, 75007, 75010, 75011 |
| Cedar Hill | 75104, 75106 |
| Coppell | 75019 |
| Dallas | 75201, 75202, 75203, 75204, 75205, 75206, 75207, 75208, 75209, 75210, 75211, 75212, 75214, 75215, 75216, 75217, 75218, 75219, 75220, 75223, 75224, 75225, 75226, 75227, 75228, 75229, 75230, 75231, 75232, 75233, 75234, 75235, 75236, 75237, 75238, 75240, 75241, 75242, 75243, 75244, 75246, 75247, 75248, 75249, 75251, 75252, 75253, 75254, 75270, 75287 |
| Denton | 76201, 76202, 76203, 76204, 76205, 76206, 76207, 76208, 76209, 76210 |
| Euless | 76039, 76040 |
| Flower Mound | 75022, 75027, 75028 |
| Fort Worth | 76101, 76102, 76103, 76104, 76105, 76106, 76107, 76108, 76109, 76110, 76111, 76112, 76113, 76114, 76115, 76116, 76118, 76119, 76120, 76121, 76122, 76123, 76124, 76126, 76129, 76130, 76131, 76132, 76133, 76134, 76135, 76136, 76137, 76140, 76147, 76148, 76150, 76155, 76161, 76162, 76163, 76164, 76166, 76177, 76179, 76180, 76181, 76182, 76185, 76191, 76192, 76193, 76195, 76196, 76197, 76198, 76199 |
| Frisco | 75033, 75034, 75035, 75036 |
| Garland | 75040, 75041, 75042, 75043, 75044, 75045, 75046, 75047, 75048, 75049 |
| Grand Prairie | 75050, 75051, 75052, 75053, 75054 |
| Grapevine | 76051, 76092, 76099 |
| Irving | 75014, 75015, 75016, 75017, 75038, 75039, 75060, 75061, 75062, 75063 |
| Keller | 76244, 76248 |
| Lewisville | 75029, 75057, 75067, 75077 |
| McKinney | 75069, 75070, 75071 |
| Mesquite | 75149, 75150, 75181, 75182, 75185, 75187 |
| Plano | 75023, 75024, 75025, 75026, 75074, 75075, 75086, 75093, 75094 |
| Richardson | 75080, 75081, 75082, 75083, 75085 |
| Southlake | 76092 |
| The Colony | 75056 |
| Wylie | 75098 |
Houston Metropolitan Area
We proudly serve from the bustling streets of downtown Houston to the charming neighborhood of Katy, Sugar Land, Woodlands, and Cypress.
What We Offer:
- Comprehensive heating and cooling solutions
- Indoor air quality improvements for healthier living and working spaces
- Reliable residential and commercial service
Check out the areas we cover in Houston:
| City | ZIP Codes |
|---|---|
| Alvin | 77511, 77512 |
| Baytown | 77520, 77521, 77522, 77523 |
| Bellaire | 77401, 77402 |
| Conroe | 77301, 77302, 77303, 77304, 77305, 77306, 77384, 77385 |
| Cypress | 77410, 77429, 77433 |
| Deer Park | 77536 |
| Friendswood | 77546, 77549 |
| Galveston | 77550, 77551, 77552, 77553, 77554, 77555 |
| Houston | 77001, 77002, 77003, 77004, 77005, 77006, 77007, 77008, 77009, 77010, 77011, 77012, 77013, 77014, 77015, 77016, 77017, 77018, 77019, 77020, 77021, 77022, 77023, 77024, 77025, 77026, 77027, 77028, 77029, 77030, 77031, 77032, 77033, 77034, |
Austin
Our services extend to the lively Austin and its peaceful suburbs.
Our top-tier HVAC services are available in the following neighborhoods of the dynamic city:
| City | ZIP Codes |
|---|---|
| Downtown Austin | 78701 |
| Bryker Woods | 78703 |
| Caswell Heights | 78705 |
| Eastwoods | 78705 |
| Hancock | 78705 |
| Heritage | 78705 |
| Hyde Park | 78751 |
| Judges' Hill | 78701 |
| North University | 78705 |
| Oakmont Heights | 78703 |
| Old Enfield | 78703 |
| Old West Austin | 78703 |
| Pemberton Heights | 78703 |
| Rosedale | 78756 |
| Shoal Crest | 78705 |
| Allandale | 78756, 78757 |
| Brentwood | 78756, 78757 |
| Crestview | 78757 |
| Highland | 78752 |
| North Burnet | 78758 |
| North Lamar | 78753 |
| North Loop | 78751 |
| Wooten | 78757 |
| Windsor Hills | 78753 |
| Windsor Park | 78723 |
| Canyon Creek | 78726 |
| Great Hills | 78759 |
| Northwest Hills | 78731 |
| Copperfield | 78753 |
| Wells Branch | 78728 |
| Scofield Farms | 78727 |
| Central East Austin | 78702 |
| East Cesar Chavez | 78702 |
| Govalle | 78702 |
| Holly | 78702 |
| Mueller | 78723 |
| Tarrytown | 78703 |
| West Congress | 78745 |
| West End | 78703 |
| Barton Hills | 78704 |
| Bouldin Creek | 78704 |
| Dawson | 78704 |
| Galindo | 78704 |
| South Congress | 78704 |
| South Lamar | 78704 |
| Travis Heights | 78704 |
| Zilker | 78704 |
| East Riverside-Oltorf | 78741 |
| Montopolis | 78741 |
| Pleasant Valley | 78741 |
| Dove Springs | 78744 |
| Onion Creek | 78747 |
| South Manchaca | 78745 |
| Circle C Ranch | 78739 |
| Oak Hill | 78735 |
| Shady Hollow | 78748 |
| Westgate | 78745 |
Frequently Asked Questions (FAQs)
1. What HVAC services do you offer?
We serve as your one-stop solution for all your HVAC needs. Our full-service HVAC solutions include installation, repair, maintenance, duct work, indoor air quality improvements and emergency services.
All our services are available for homes and businesses alike.
2. Which areas do you serve?
Our service area covers all of Dallas-Fort Worth (DFW) metroplex, Austin, and Houston. This includes the surrounding neighborhoods. We are always ready to bring all our top-quality solutions at your doorstep regardless of wherever you live in these areas.
3. Do you offer emergency HVAC services?
Absolutely! We understand that HVAC emergencies don’t maintain any convenient time. That’s why we are on call 24/7 for all your heating and cooling system repairs. Your comfort is our priority, irrespective of the time of the day.
4. What financing or warranties do you offer?
We provide flexible financing options for your purchase and manufacturer-backed warranties on new installations and selected repair services.
We make investing in comfort more accessible. Let us help you find a plan that works for your budget.
5. What HVAC brands do you install and service?
We trust and work with the best brands in the HVAC industry, including Trane, Carrier, Lennox, Goodman, and RunTru. All the brands are known for their quality, energy-efficiency, and reliability.
6. Can I get a free estimate for a new HVAC system?
Of course! We offer free, no-obligation estimates for new HVAC installations. We're here to help you choose the best system, in a comfortable, pressure-free way.
Get In Touch
Texas, USA
